SENDEMACH 1.2 Ton Mini Excavator – Compact, Powerful, and Built for Productivity
The 1.2T hydraulic crawler excavator is a step up in digging power and stability from the 1-ton class, while still maintaining a compact footprint ideal for tight-access areas. Whether you're digging trenches, repairing roads, landscaping gardens, or handling farm work, this mini excavator is built for performance and versatility.

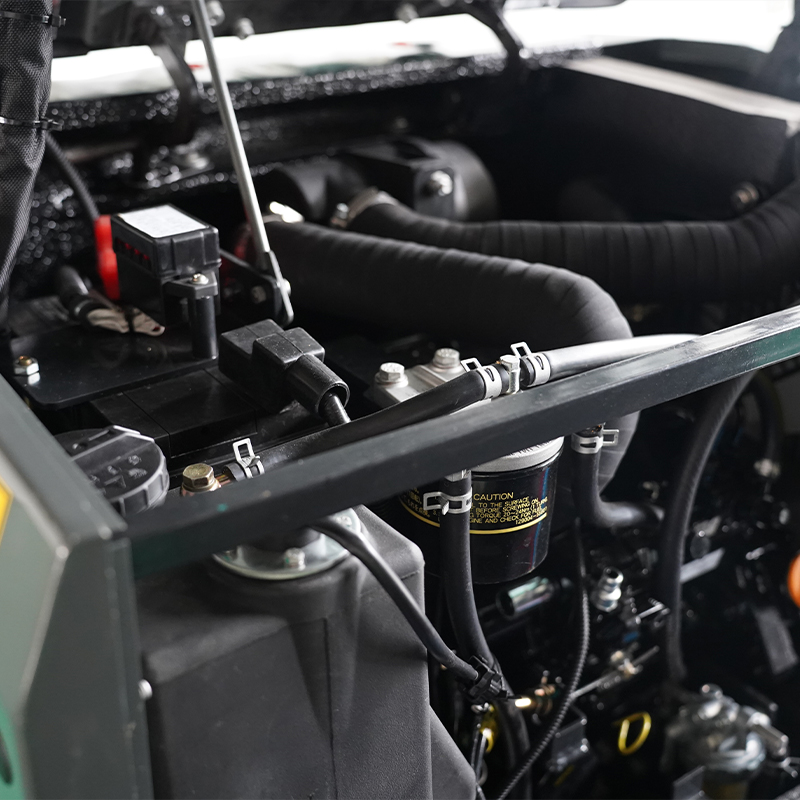

Engine Options:
Equipped with high-efficiency Yanmar, Kubota,certified with EPA, Euro 5, CE, ISO, to meet export market requirements.
Operating Weight:
Approx. 1200 kg, offering better digging depth and lifting capability than 1-ton models.
360° Zero Tail Swing:
Enables full rotation even in narrow environments, improving job site efficiency and flexibility.
Attachment Versatility:
Supports a wide range of hydraulic and mechanical tools, including:
➤ Auger
➤ Hydraulic breaker
➤ Tilt/ditch bucket
➤ Rake
➤ Thumb clamp
➤ Ripper
➤ Narrow/screening buckets
Hydraulic System:

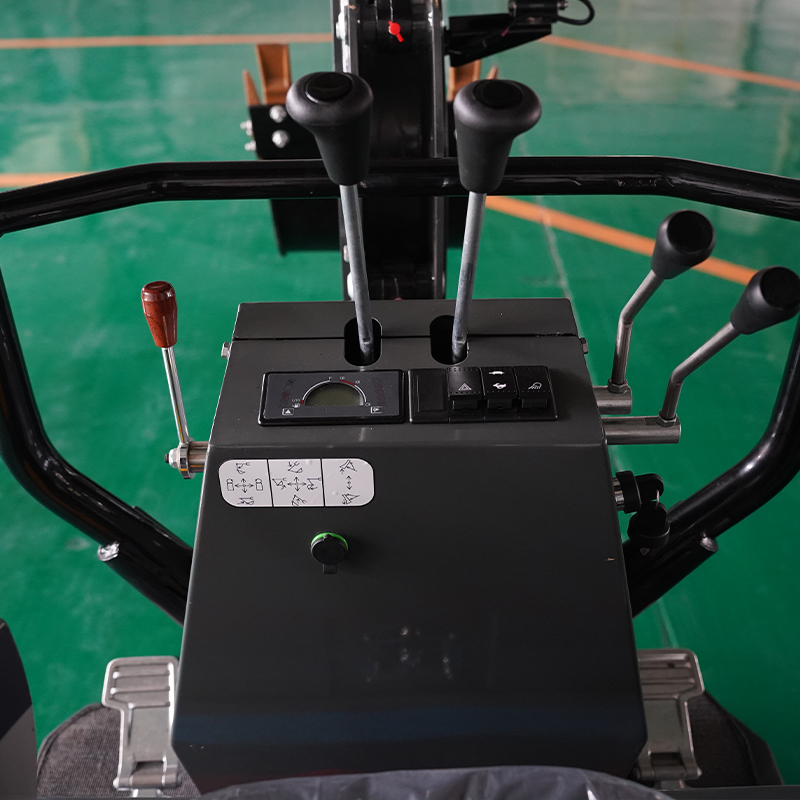

Smooth, precise controls with optional pilot control system for improved operator comfort and accuracy.
Advanced Cooling System:
Built-in exhaust fan and efficient ventilation keep the machine cool in high-temperature environments.
Filtration & Protection:
Fitted with high-precision air/oil filters (1μm, 99.9% efficiency) and oil pressure alarm system to prevent engine damage.
Customization Options:
Boom swing
Telescopic track
Closed cabin or canopy
Rubber or steel tracks
Optional joystick controls
Color: Yellow, red, black, white, blue, green (customizable)
| Operating weight（T） | 1.24 |
| Bucket capacity(m³） | 0.03 |
| Engine model | YANMAR 3TNV70 |
| Rated power (kw/r/min) | 10.3/2200 |
| Authentication | Euro V |
| Max.flow (L/min) | 22 |
| Working pressure (Mpa) | 17.5 |
| Fuel tank capacity (L) | 13 |
| Hydraulic oil tank capacity (L) | 13 |
| Travel speed (km/h) | 1.5 |
| Swing speed (r/min) | 10 |
| Max. climbing degree (%) | 58 |
| Arm digging force(KN) | 5.6 |
| Bucket digging force (KN) | 9.2 |
| Average grounding pressure (Kpa) | 33 |
| Largest traction(KN) | 12.6 |
| A-Overall length (mm) | 3053 |
| B-Overall width (mm) | 880 |
| C-Overall height (to top of boom)(mm) | 1170 |
| D-Overall height (to top of cab)(mm) | 2400 |
| E-Counterweight ground clearance(mm) | 400 |
| F-Min. ground clearance (mm) | 130 |
| G-Tail swing radius (mm) | 550 |
| H-Track ground length(mm) | 972 |
| J-Track length (mm) | 1296 |
| K-Track gauge (mm) | 680 |
| L-Track width (mm) | 860 |
| M-Track shoe width (mm) | 180 |
| N-Turntable width (mm) | 850 |
| O-Max. digging height (mm) | 3018 |
| P-Max. dumping height (mm) | 2039 |
| Q-Max. digging depth (mm) | 1809 |
| R-Max. vertical wall digging depth (mm) | 1593 |
| T-Max. digging reach (mm) | 3439 |
| U-Max. digging reach at ground level (mm) | 3390 |
| V-Min. swing radius (mm) | 1591 |
| X-Distance between center of rotation and tail length (mm) | 806 |
| Y-Track shoe thickness (mm) | - |
| Z-Height of counterweight (mm) | 735 |
| A1-Ground length (in transportion)(mm) | 1560 |
| Arm length (mm) | 890 |
| Boom length (mm) | 1500 |
| Deflection angle left°/right° | 50°/70° |
| Maximum dozing height/depth (mm) | 195/195 |
