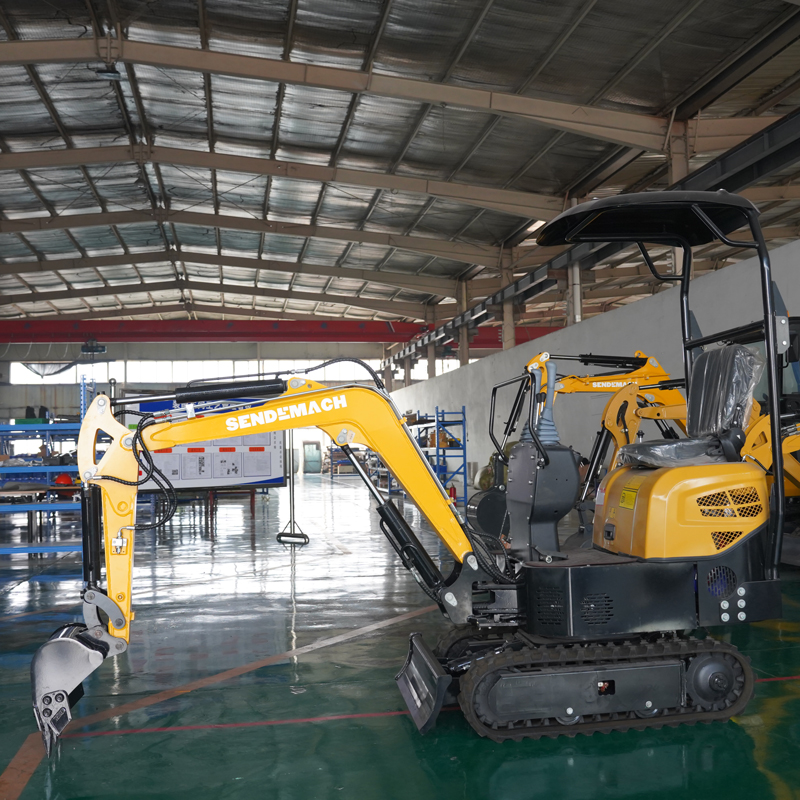

SENDEMACH SD10 – Compact Power for Tight Spaces
The SD10 1 Ton Mini Excavator is a reliable and compact machine designed for high-efficiency work in narrow job sites. Built with a durable structure and powered by a high-performance engine (Yanmar, Koop, or optional), the SD10 is ideal for a wide range of applications such as landscaping, agriculture, trenching, and light construction.
With CE, EPA, Euro 5, and ISO certifications, SD10 meets international standards and is widely accepted in global markets including Europe, Southeast Asia, South America, and Africa.
High-Performance Engine:
Equipped with a reliable Yanmar 3TNV70, Koop, or customized engine, delivering low fuel consumption and powerful output.
Compact Size & 360° Rotation:
Zero tail swing allows for full rotation in tight spaces, ideal for indoor, garden, and urban projects.
Easy Maintenance:
Openable engine hood gives easy access to internal components for daily inspection and refueling.
Hydraulic Attachments Supported:
Compatible with a wide range of tools such as:
➤ Auger
➤ Breaker
➤ Ripper
➤ Hydraulic thumb
➤ Tilt bucket
➤ Rake
➤ Narrow bucket, sieve bucket, and more.
Durable Structure & Smooth Operation:
Features a reinforced canopy, stable crawler chassis, and smooth hydraulic system for reliable and safe operation.
Oil Pressure Protection & Filtration System:
High-precision air and oil filters (1μm, 99.9% filtration rate), with automatic oil pressure alarm system to protect engine lifespan.
Flexible Configuration (Optional):
Boom Swing
Telescopic Track
Closed Cabin with Heater/Fan
Rubber or Steel Tracks
Red shock-absorbing flexible coupling
Cooling System:
Built-in fan and optimized cooling structure prevent overheating and ensure consistent performance in hot weather.
Color options: Yellow, Red, Blue, White, Black, and more.
Custom logos, labels, and packaging available.
Support for private branding and bulk OEM projects.
| Operating weight（KG） | 1000 |
| Bucket capacity(m³） | 0.022 |
| Engine model | KOOP KD192F-1 |
| Rated power (kw/r/min) | 7.0/3000 |
| Authentication | Euro V |
| Max.flow (L/min) | 18 |
| Working pressure (Mpa) | 16 |
| Fuel tank capacity (L) | 5.5 |
| Hydraulic oil tank capacity (L) | 9.4 |
| Travel speed (km/h) | 1.9 |
| Swing speed (r/min) | 11.5 |
| Max. climbing degree (%) | 58 |
| Arm digging force(KN) | 5.2 |
| Bucket digging force (KN) | 7.2 |
| Average grounding pressure (Kpa) | 28 |
| Largest traction(KN) | 11.5 |
| A-Overall length (mm) | 2976 |
| B-Overall width (mm) | 840/880 |
| C-Overall height (to top of boom)(mm) | 1110 |
| D-Overall height (to top of cab)(mm) | 2225 |
| E-Counterweight ground clearance(mm) | 370 |
| F-Min. ground clearance (mm) | 132 |
| G-Tail swing radius (mm) | 815 |
| H-Track ground length(mm) | 900 |
| J-Track length (mm) | 1233 |
| K-Track gauge (mm) | 660 |
| L-Track width (mm) | 840 |
| M-Track shoe width (mm) | 180 |
| N-Turntable width (mm) | 760 |
| O-Max. digging height (mm) | 2585 |
| P-Max. dumping height (mm) | 1715 |
| Q-Max. digging depth (mm) | 1520 |
| R-Max. vertical wall digging depth (mm) | - |
| T-Max. digging reach (mm) | 3210 |
| U-Max. digging reach at ground level (mm) | 3125 |
| V-Min. swing radius (mm) | 1595 |
| X-Distance between center of rotation and tail length (mm) | 815 |
| Y-Track shoe thickness (mm) | - |
| Z-Height of counterweight (mm) | 416 |
| A1-Ground length (in transportion)(mm) | 1755 |
| Arm length (mm) | 800 |
| Boom length (mm) | 1480 |
| Deflection angle left°/right° | 50°/70° |
| Maximum dozing height/depth (mm) | 146/261 |
