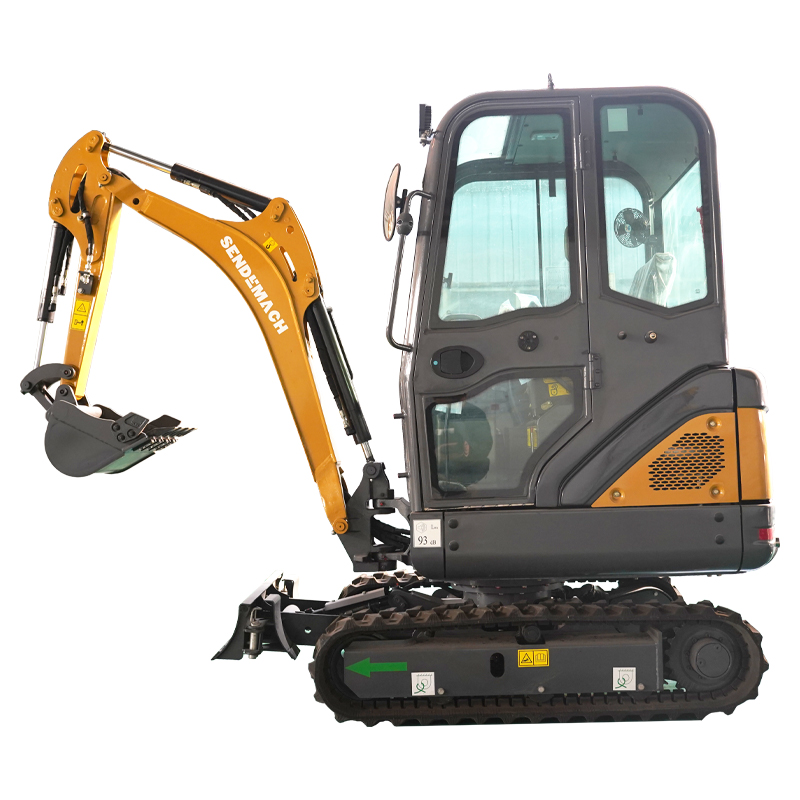

SENDEMACH 2 Ton Mini Excavator – Comfort, Strength, and Precision for Every Job
The 2T hydraulic crawler mini excavator from SENDEMACH is engineered for contractors who demand performance, operator comfort, and durability. Unlike zero-tail or ultra-compact models, this excavator features a standard tail design for added balance and structural strength, and a fully enclosed cabin for all-weather protection.
Ideal for trenching, leveling, digging, and small-scale demolition, the 2T model is widely used in urban projects, agricultural development, and rental fleets.

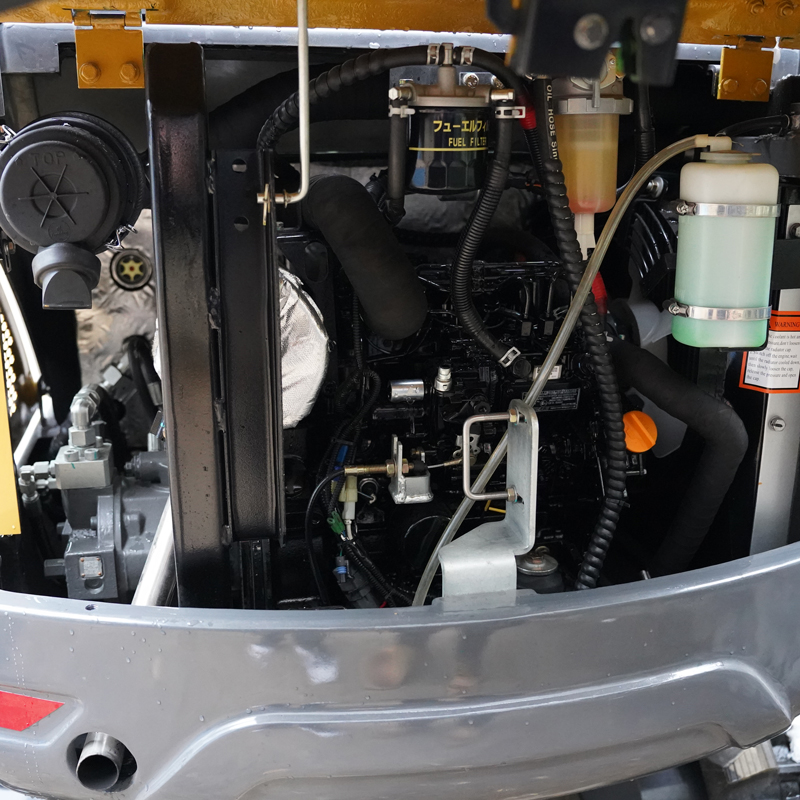

Engine Options:
Available with Yanmar, Kubota, Laidong, Koop or other trusted brands. All engine options are EPA / Euro 5 / CE / ISO certified for global compliance.

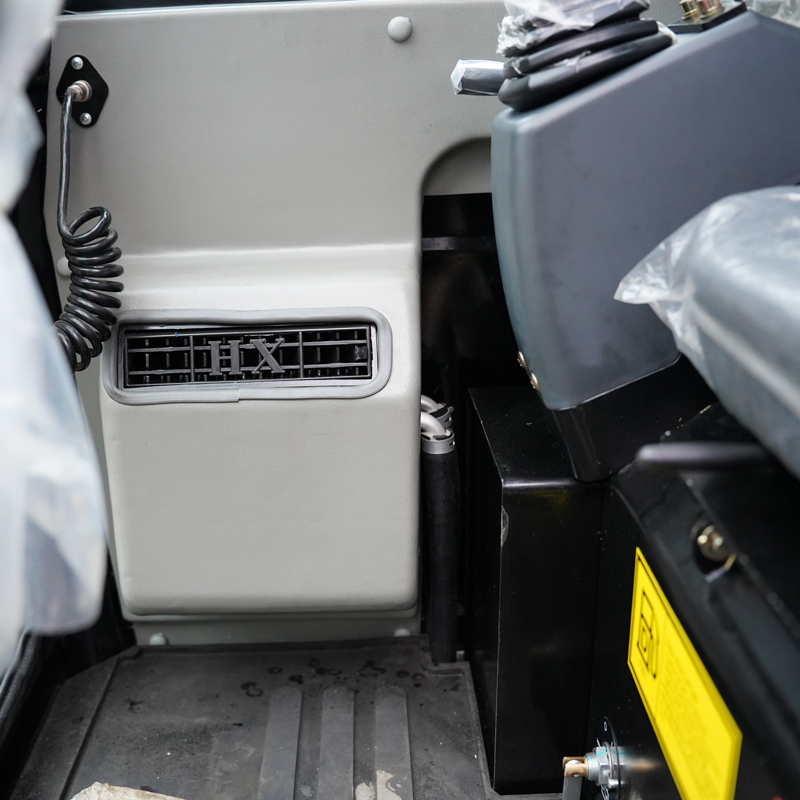

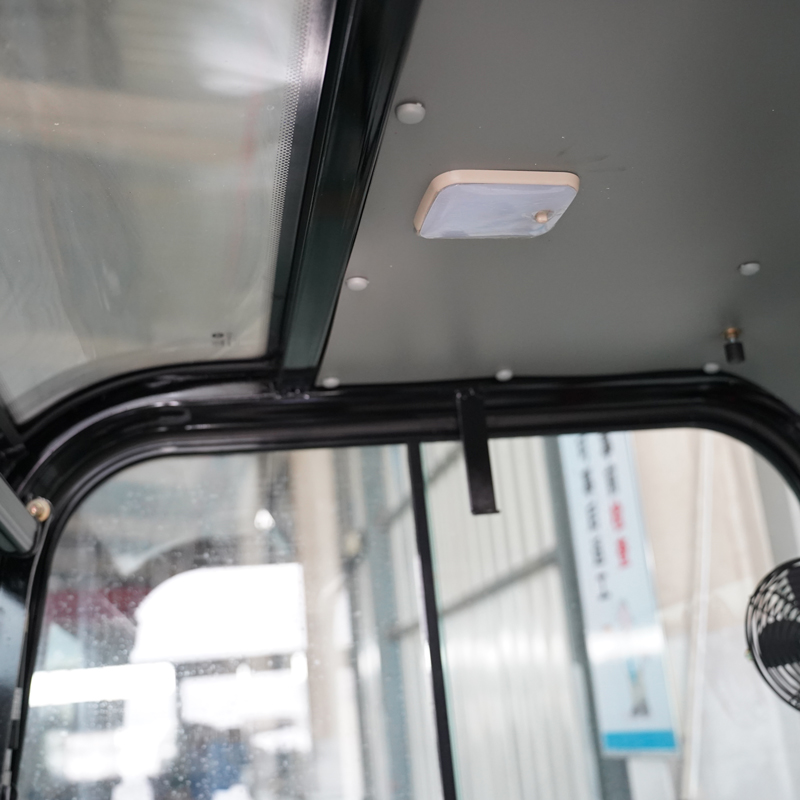

Enclosed Cabin:
Fully enclosed operator cabin with windshield wipers, fan/heater (optional), interior lighting, and better noise/dust isolation.
Standard Tail Design:
Non-zero-tail design offers increased counterweight and better balance on slopes or hard soil, especially during lifting or deeper digging.
Operating Weight & Performance:
➤ Approx. 2000 kg operating weight
➤ Digging depth: ~2300 mm
➤ Max digging radius: ~4000 mm
➤ Lifting capacity and stability enhanced compared to smaller models
Undercarriage:
➤ Fixed track width, no retractable chassis—offering higher frame rigidity
➤ Rubber or optional steel tracks
➤ Retractable tracks

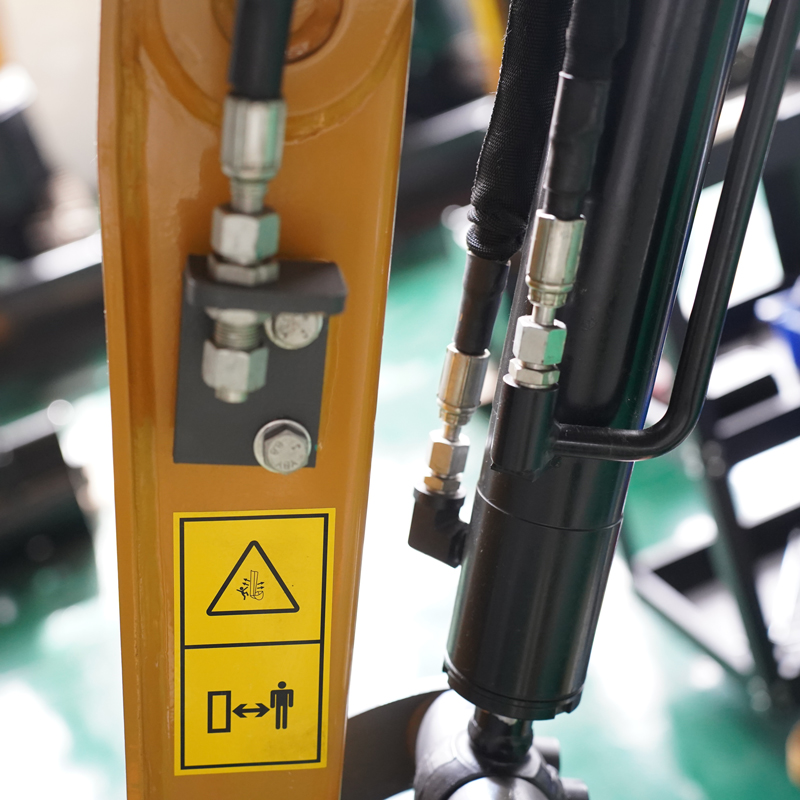

Hydraulic System:
Smooth operating system with optional pilot control for greater precision, lower operator fatigue
Attachment Compatibility:
Works with:
➤ Auger
➤ Hydraulic breaker
➤ Tilting bucket
➤ Thumb clamp
➤ Ditch cleaning bucket
➤ Ripper
➤ Rake, quick coupler, and more
Cooling & Filtration System:
➤ Sealed cooling system with large exhaust fan
➤ Oil/air filters with 1μm precision, 99.9% filtration rate
➤ Oil pressure alarm and hydraulic tank breather valve with pressure compensation for better protection and longer machine life

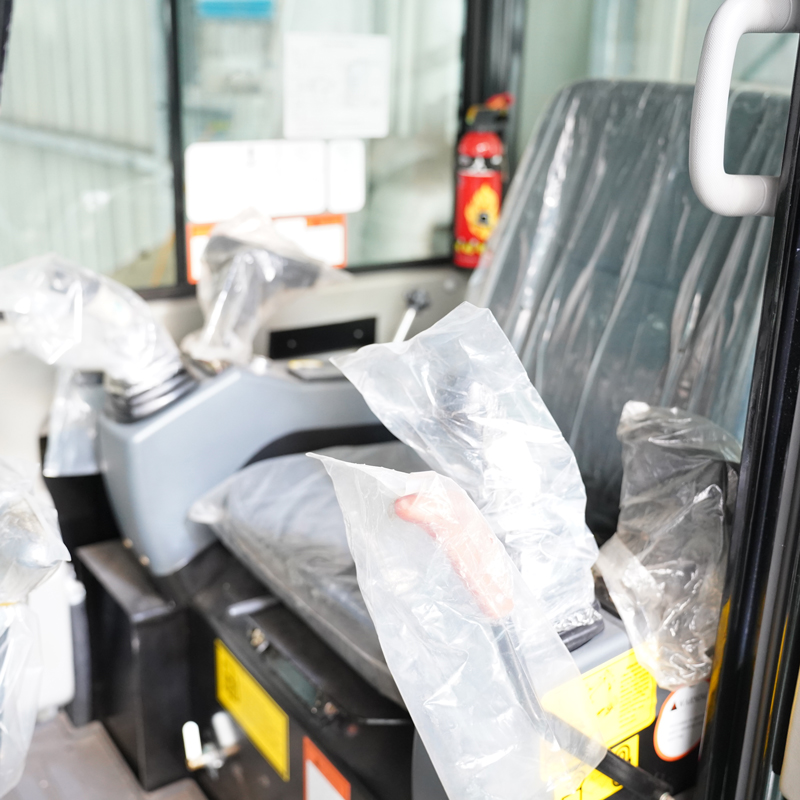

Cab & Safety Enhancements:
➤ Safety belt, operator protection structure (ROPS/FOPS optional)
➤ Adjustable seat, side joystick control optional
➤ Reinforced boom and frame for high-load durability
Logo, color, control layout, attachments
Engine brand selection
Custom packaging & operator manuals
Available colors: Yellow, Red, Blue, White, Black, Green, or custom
| Operating weight（T） | 2 |
| Bucket capacity(m³） | 0.04 |
| Engine model | YANMAR 3TNV70F |
| Rated power (kw/r/min) | 10.3/2200 |
| Authentication | Euro V |
| Hydraulic pump model | WANY |
| Max.flow (L/min) | 43.2 |
| Working pressure (Mpa) | 21 |
| Fuel tank capacity (L) | 32 |
| Hydraulic oil tank capacity (L) | 27 |
| Travel speed (km/h) | 2.0/3.2 |
| Swing speed (r/min) | 10.5 |
| Max. climbing degree (%) | 58 |
| Arm digging force(KN) | 9.5 |
| Bucket digging force (KN) | 14.5 |
| Average grounding pressure (Kpa) | 28.0 |
| Largest traction(KN) | 19 |
| A-Overall length (mm) | 3867 |
| B-Overall width (mm) | 1000 |
| C-Overall height (to top of boom)(mm) | 1185 |
| D-Overall height (to top of cab)(mm) | 2313 |
| E-Counterweight ground clearance(mm) | 484 |
| F-Min. ground clearance (mm) | 175 |
| G-Tail swing radius (mm) | 695 |
| H-Track ground length(mm) | 1210 |
| J-Track length (mm) | 1588 |
| K-Track gauge (mm) | 760 (1090 after extension) |
| L-Track width (mm) | 990 (1320 after extension) |
| M-Track shoe width (mm) | 230 |
| N-Turntable width (mm) | 1000 |
| O-Max. digging height (mm) | 3327 |
| P-Max. dumping height (mm) | 2323 |
| Q-Max. digging depth (mm) | 2110 |
| R-Max. vertical wall digging depth (mm) | 1600 |
| T-Max. digging reach (mm) | 3947 |
| U-Max. digging reach at ground level (mm) | 3889 |
| V-Min. swing radius (mm) | 1575 |
| X-Distance between center of rotation and tail length (mm) | 665 |
| Y-Track shoe thickness (mm) | 5 |
| Z-Height of counterweight (mm) | 794 |
| A1-Ground length (in transportion)(mm) | 2611 |
| Arm length (mm) | 950 |
| Boom length (mm) | 1830 |
| Deflection angle left°/right° | 50°/70° |
| Maximum dozing height/depth (mm) | 240/198 |
