SENDEMACH 3 Ton Mini Excavator – Stronger. Smarter. Built to Work.
The SENDEMACH 3T mini crawler excavator is designed to deliver heavy-duty performance while retaining a compact footprint for confined job sites. It offers significantly higher digging power, deeper working range, and a more spacious operator environment than the 1.5T or 2T models.
With a fully enclosed cabin, standard tail design, and non-retractable undercarriage, the 3T model is built for intensive use in construction, infrastructure, roadwork, agriculture, and rental fleets.
Certified Engine Options:
Choose from Yanmar, Kubota, Laidong, Koop, or other certified brands with EPA, Euro 5, CE, ISO certifications.
Operating Specifications:
➤ Operating weight: ~3000 kg
➤ Max digging depth: ~2550–2700 mm
➤ Max digging radius: ~4500–4800 mm
➤ Higher lifting and digging power for medium-heavy workloads

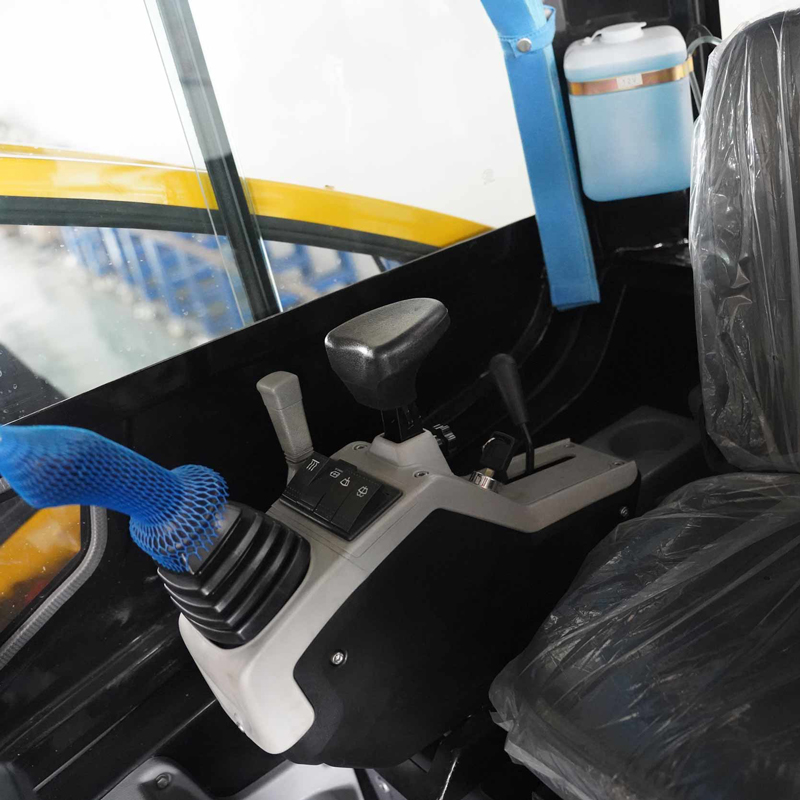

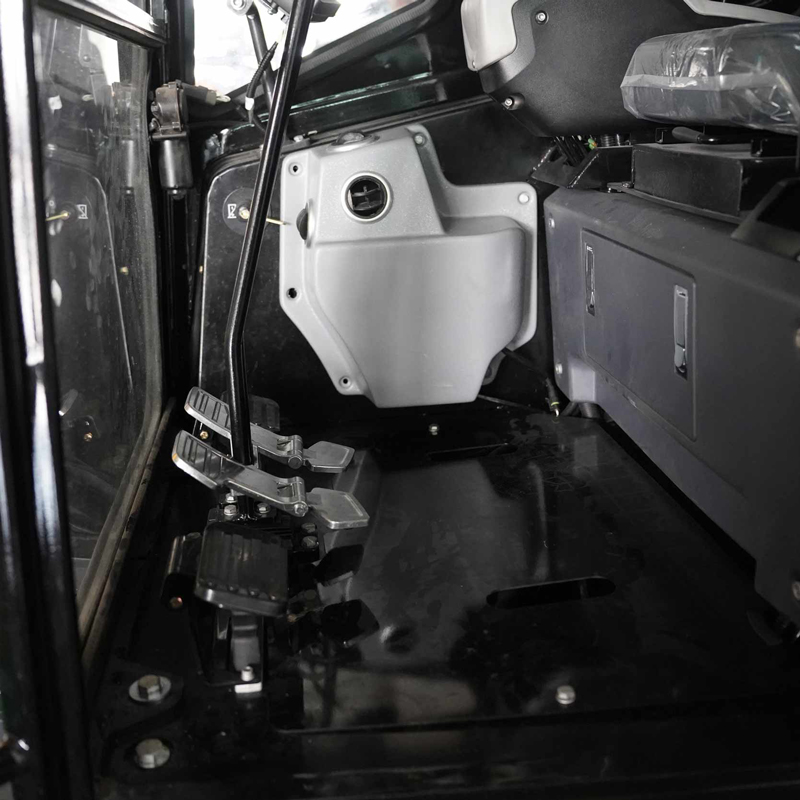

Enclosed Cabin:

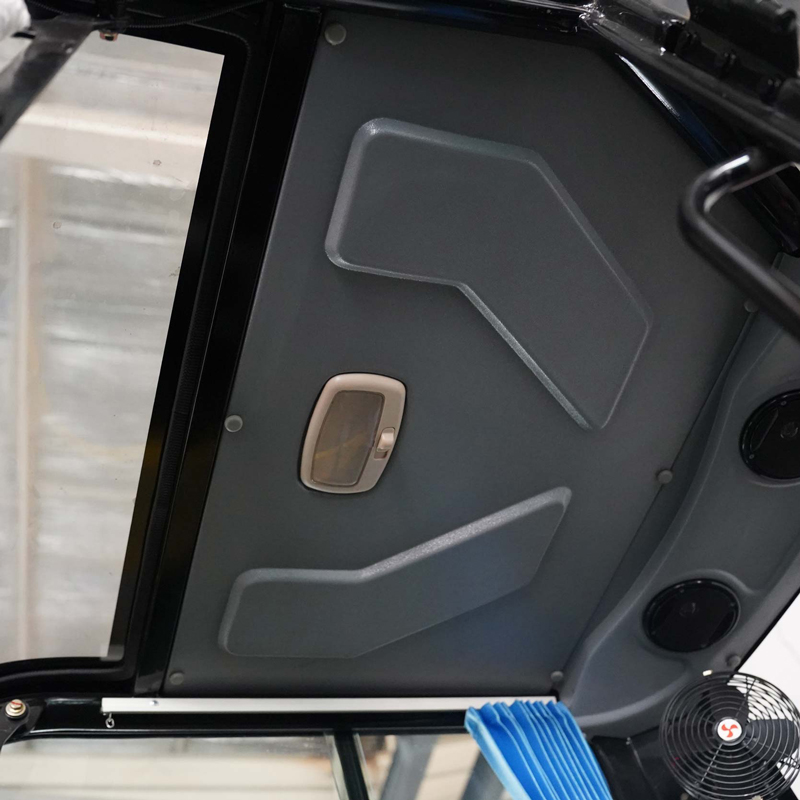

➤ Standard cabin with safety glass, fan/heater (optional), wiper, interior lighting
➤ Great visibility and operator comfort for all-weather use
Standard Tail Swing:
Traditional counterweight design improves balance during lifting and deep trenching tasks.
Fixed Chassis / Undercarriage:
➤ Non-retractable design for stronger frame rigidity and stability
➤ Durable rubber or optional steel tracks
Hydraulic System:
➤ Advanced system with pilot control option
➤ Smooth, responsive operation even in demanding tasks
Attachment Versatility:
Works with wide range of tools for multi-purpose use:
➤ Hydraulic breaker
➤ Tilt bucket
➤ Auger
➤ Rake
➤ Thumb clamp
➤ Ripper
➤ Grapple and more
Cooling & Protection System:
➤ High-efficiency radiator with sealed exhaust fan
➤ 1μm precision filtration (99.9% rate) for oil and air
➤ Oil pressure alarm system
➤ Hydraulic breather valve with pressure compensation and air filtration – improves system lifespan
Heavy-Duty Structure:
➤ Reinforced boom and arm
➤ Thickened chassis frame
➤ Optional additional counterweight for extra lifting stability
Custom logos, color schemes, control layout
User manuals, packaging, branding
Attachments and optional features per distributor needs
Standard colors: Yellow, Red, Black, White, Blue, or custom on request
| Operating weight（T） | 3 |
| Bucket capacity(m³） | 0.08 |
| Engine model | YANMAR 3TNV80F |
| Rated power (kw/r/min) | 15.2/2500 |
| Authentication | Euro V |
| Max.flow (L/min) | 72 |
| Working pressure (Mpa) | 22 |
| Fuel tank capacity (L) | 35 |
| Hydraulic oil tank capacity (L) | 28 |
| Travel speed (km/h) | 2.0/3.2 |
| Swing speed (r/min) | 11.5 |
| Max. climbing degree (%) | 58 |
| Arm digging force(KN) | 14.2 |
| Bucket digging force (KN) | 20 |
| Average grounding pressure (Kpa) | 30.5 |
| Largest traction(KN) | 28 |
| A-Overall length (mm) | 4159 |
| B-Overall width (mm) | 1550 |
| C-Overall height (to top of boom)(mm) | 1636 |
| D-Overall height (to top of cab)(mm) | 2560 |
| E-Counterweight ground clearance(mm) | 535 |
| F-Min. ground clearance (mm) | 320 |
| G-Tail swing radius (mm) | 775 |
| H-Track ground length(mm) | 1600 |
| J-Track length (mm) | 2040 |
| K-Track gauge (mm) | 1250 |
| L-Track width (mm) | 1550 |
| M-Track shoe width (mm) | 250 |
| N-Turntable width (mm) | 1375 |
| O-Max. digging height (mm) | 4132 |
| P-Max. dumping height (mm) | 2742 |
| Q-Max. digging depth (mm) | 2485 |
| R-Max. vertical wall digging depth (mm) | 2240 |
| T-Max. digging reach (mm) | 4610 |
| U-Max. digging reach at ground level (mm) | 4494 |
| V-Min. swing radius (mm) | 2096 |
| X-Distance between center of rotation and tail length (mm) | 775 |
| Y-Track shoe thickness (mm) | 5.5 |
| Z-Height of counterweight (mm) | 300 |
| A1-Ground length (in transportion)(mm) | 2908 |
| Arm length (mm) | 1150 |
| Boom length (mm) | 2015 |
| Deflection angle left°/right° | 47°/73° |
| Maximum dozing height/depth (mm) | 362/383 |
