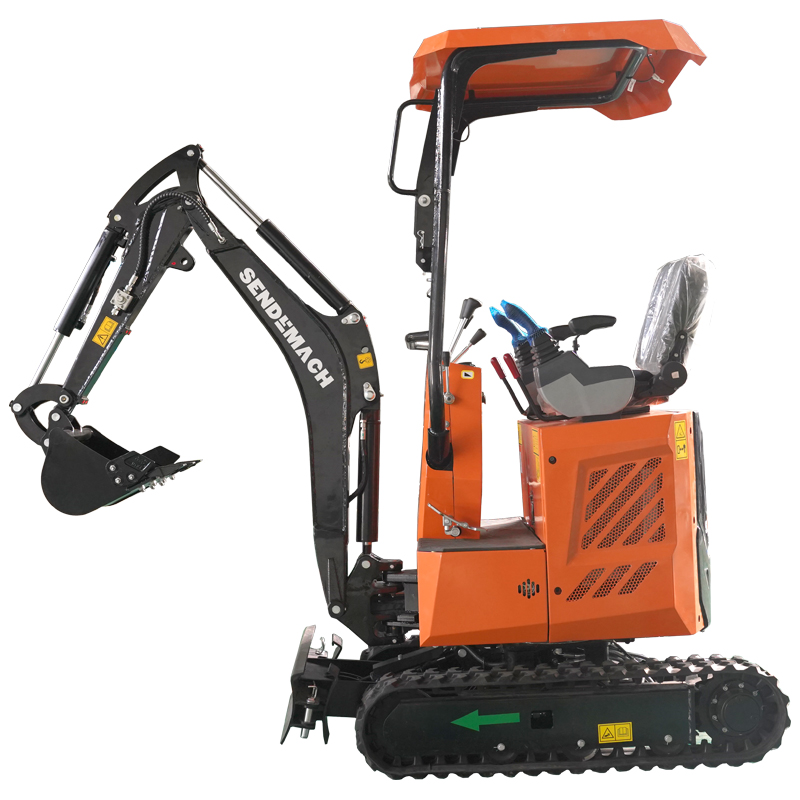

SENDEMACH 1.5 Ton Mini Excavator – Compact Size, Heavy-Duty Performance
The SENDEMACH 1.5T hydraulic mini excavator offers an excellent balance of size, power, and flexibility. Ideal for construction, utilities, landscaping, and farm work, this model is designed to handle more demanding jobs than the 1-ton or 1.2-ton versions while maintaining easy transport and access to narrow spaces.
With full OEM customization, global certifications, and support for multiple attachments, it's a versatile machine for professional users and distributors.

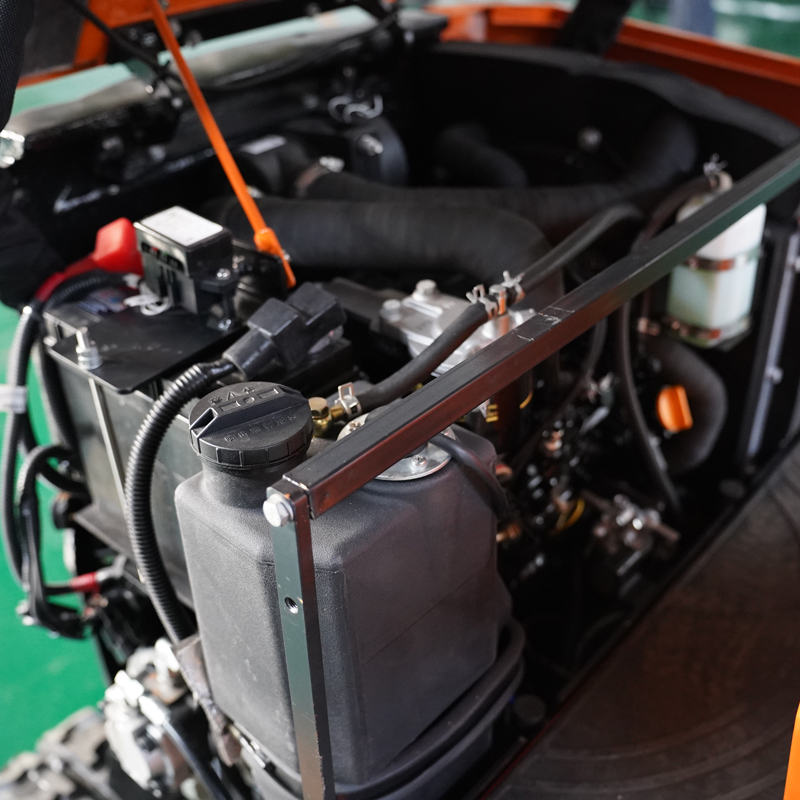

High-Power Engine:
Optional Yanmar, Kubota, Laidong, or other branded engines available, with EPA, Euro 5, CE, ISO certifications.
Enhanced Stability & Lifting Capacity:
Operating weight approx. 1500 kg, providing better balance and performance for light construction and excavation work.
Advanced Hydraulic System:
Smooth, responsive operation; optional pilot control system for precise digging and operator comfort.
Zero Tail Swing:
Full 360° rotation without tail overhang—suitable for urban jobs, tight spaces, and confined construction areas.
Multiple Attachment Compatibility:
Easily connect to a wide range of tools:
➤ Auger
➤ Hydraulic breaker
➤ Tilt bucket
➤ Ripper
➤ Thumb
➤ Rake
➤ Trenching or screening buckets
Durability & Protection:
Fitted with reinforced boom structure, flexible red coupling for vibration reduction, and oil pressure alarm system for engine safety.
High-Precision Filtration:
Air and oil filters with 1μm filtration accuracy, 99.9% efficiency; pressure-compensated hydraulic breather valve with filtration for extended component life.
Cooling System:
Equipped with built-in exhaust fan and efficient radiator for heat dissipation in high-load environments.
Optional Configurations:
Boom deflection
Telescopic undercarriage
Closed cabin with heater/fan
Steel or rubber tracks
Color: Yellow, red, black, white, blue, green (fully customizable)
Custom branding/logo/packaging for OEM orders
| Operating weight（T） | 1.5 |
| Bucket capacity(m³） | 0.03 |
| Engine model | YANMAR 3TNV70 |
| Rated power (kw/r/min) | 10.3/2200 |
| Authentication | Euro V |
| Max.flow (L/min) | 22 |
| Working pressure (Mpa) | 17.5 |
| Fuel tank capacity (L) | 13 |
| Hydraulic oil tank capacity (L) | 13 |
| Travel speed (km/h) | 1.2/2.4 |
| Swing speed (r/min) | 10.5 |
| Max. climbing degree (%) | 58 |
| Arm digging force(KN) | 6.5 |
| Bucket digging force (KN) | 11 |
| Average grounding pressure (Kpa) | 31 |
| Largest traction(KN) | 13 |
| A-Overall length (mm) | 3070 |
| B-Overall width (mm) | 880/1100 |
| C-Overall height (to top of boom)(mm) | 1170 |
| D-Overall height (to top of cab)(mm) | 2400 |
| E-Counterweight ground clearance(mm) | 400 |
| F-Min. ground clearance (mm) | 130 |
| G-Tail swing radius (mm) | 550 |
| H-Track ground length(mm) | 1080 |
| J-Track length (mm) | 1400 |
| K-Track gauge (mm) | 670（920Extended） |
| L-Track width (mm) | 850-1100 |
| M-Track shoe width (mm) | 180 |
| N-Turntable width (mm) | 850 |
| O-Max. digging height (mm) | 3060 |
| P-Max. dumping height (mm) | 2080 |
| Q-Max. digging depth (mm) | 1830 |
| R-Max. vertical wall digging depth (mm) | 1610 |
| T-Max. digging reach (mm) | 3540 |
| U-Max. digging reach at ground level (mm) | 3500 |
| V-Min. swing radius (mm) | 1560 |
| X-Distance between center of rotation and tail length (mm) | 550 |
| Y-Track shoe thickness (mm) | - |
| Z-Height of counterweight (mm) | 735 |
| A1-Ground length (in transportion)(mm) | 1660 |
| Arm length (mm) | 890 |
| Boom length (mm) | 1500 |
| Deflection angle left°/right° | 50°/70° |
| Maximum dozing height/depth (mm) | 168/275 |
