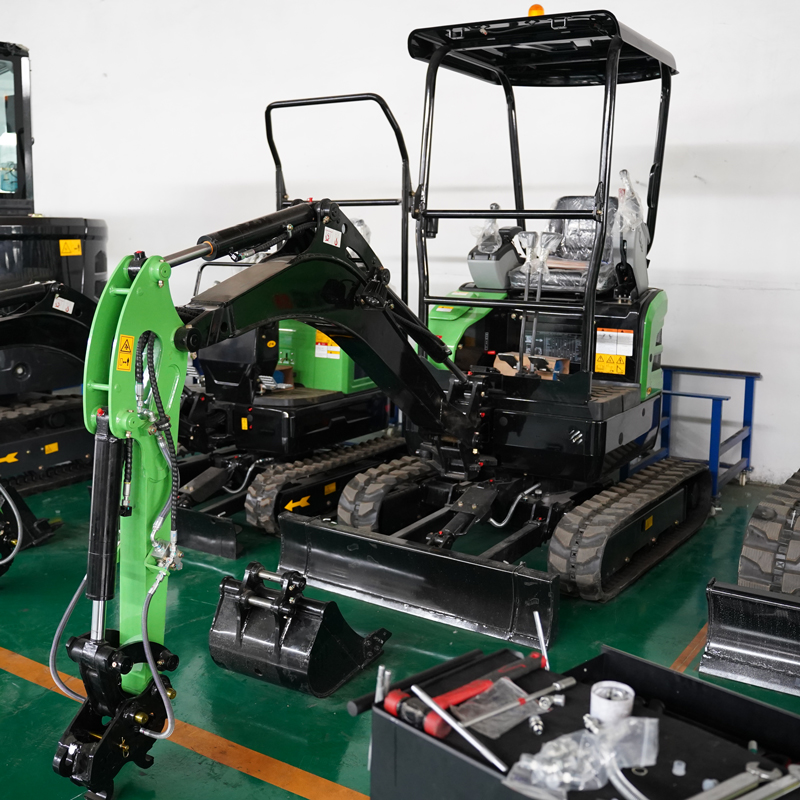

SENDEMACH 1.8 Ton Mini Excavator – Power Meets Precision
Built to handle demanding work in compact environments, the SENDEMACH 1.8T hydraulic crawler excavator offers greater lifting force, longer reach, and deeper digging capabilities than 1.2T and 1.5T models. Whether you're working on urban construction sites, agricultural projects, or rental fleets, this machine is built to perform, last, and adapt.
Certified for global markets, and with a wide range of customizable options, it’s the ideal choice for importers, dealers, and end-users.

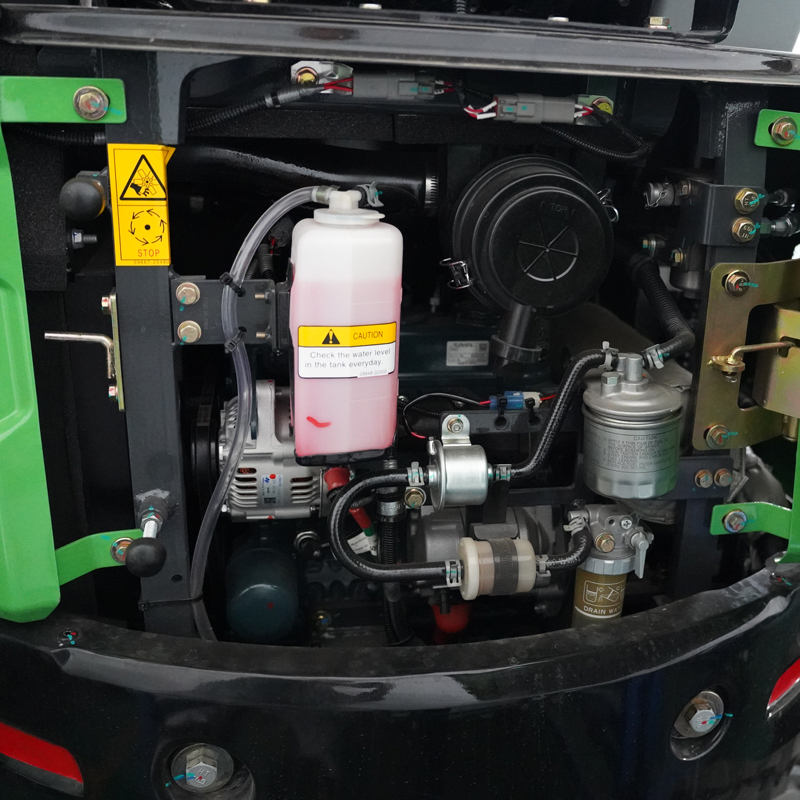

Engine Power:
Available with Yanmar, Kubota, Laidong, or other trusted engines. Certified EPA / Euro 5 / CE / ISO for export compliance.
Strong Operating Performance:
➤ Operating weight: ~1800 kg
➤ Digging depth: ~2150 mm
➤ Max digging radius: ~3700 mm
➤ Suitable for heavier lifting and extended working hours
Hydraulic System:
High-performance hydraulic system with optional pilot control, precise movement, and low fuel consumption.
360° Zero-Tail Swing Design:
Fully rotatable without tail overhang—perfect for working in narrow alleys, gardens, or near walls.
Wide Attachment Compatibility:
Easily switch between:
➤ Hydraulic breaker
➤ Earth auger
➤ Tilt bucket / ditching bucket
➤ Ripper
➤ Rake
➤ Thumb clamp
➤ Quick coupler and more
Reinforced Structure & Stability:
➤ Thickened steel boom and frame
➤ Heavy-duty track rollers
➤ Upgraded flexible coupling for shock absorption
➤ Optional counterweight for added balance
Cooling & Protection System:
➤ Large heat dissipation system with sealed fan
➤ High-precision filters (1μm, 99.9%)
➤ Oil pressure alarm system for engine safety
➤ Breather valve with pressure compensation – far superior to basic caps used by many brands
Customization Options:
Boom swing / Telescopic track

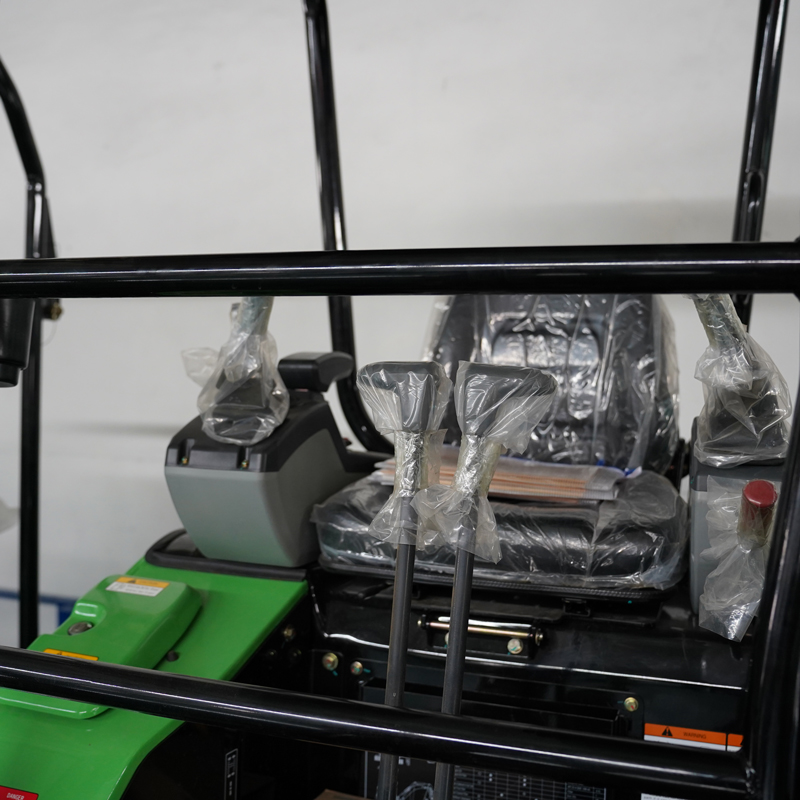

Enclosed cab with heater or fan
Rubber or steel tracks
Optional joystick control
OEM branding/logo/packaging
Colors: Yellow, red, white, blue, green, black, or as required
| Operating weight（T） | 1.8 |
| Bucket capacity(m³） | 0.04 |
| Engine model | YANMAR 3TNV70F/Kubota |
| Rated power (kw/r/min) | 10.3/2200 |
| Authentication | Euro V |
| Hydraulic pump model | |
| Max.flow (L/min) | 39.6 |
| Working pressure (Mpa) | 21 |
| Control valve model | |
| Swing motor model | |
| Travel motor model | |
| Fuel tank capacity (L) | 19 |
| Hydraulic oil tank capacity (L) | 21 |
| Travel speed (km/h) | 2.0/3.2 |
| Swing speed (r/min) | 10.5 |
| Max. climbing degree (%) | 58 |
| Arm digging force(KN) | 8.6 |
| Bucket digging force (KN) | 13.5 |
| Average grounding pressure (Kpa) | 28.0 |
| Largest traction(KN) | 16 |
| A-Overall length (mm) | 3707 |
| B-Overall width (mm) | 1000 |
| C-Overall height (to top of boom)(mm) | 1170 |
| D-Overall height (to top of cab)(mm) | 2424 |
| E-Counterweight ground clearance(mm) | 484 |
| F-Min. ground clearance (mm) | 175 |
| G-Tail swing radius (mm) | 665 |
| H-Track ground length(mm) | 1210 |
| J-Track length (mm) | 1588 |
| K-Track gauge (mm) | 760 (1090 after extension) |
| L-Track width (mm) | 990 (1320 after extension) |
| M-Track shoe width (mm) | 230 |
| N-Turntable width (mm) | 1000 |
| O-Max. digging height (mm) | 3327 |
| P-Max. dumping height (mm) | 2323 |
| Q-Max. digging depth (mm) | 2110 |
| R-Max. vertical wall digging depth (mm) | 1600 |
| T-Max. digging reach (mm) | 3947 |
| U-Max. digging reach at ground level (mm) | 3889 |
| V-Min. swing radius (mm) | 1625 |
| X-Distance between center of rotation and tail length (mm) | 665 |
| Y-Track shoe thickness (mm) | 5 |
| Z-Height of counterweight (mm) | 794 |
| A1-Ground length (in transportion)(mm) | 2611 |
| Arm length (mm) | 950 |
| Boom length (mm) | 1830 |
| Deflection angle left°/right° | 50°/70° |
| Maximum dozing height/depth (mm) | 240/198 |
