SENDEMACH 2 Ton Wheel Loader | Compact Front-End Loader for Construction & Agriculture

The SENDEMACH 2 Ton Wheel Loader is a compact, powerful front-end loader ideal for loading, earthmoving, snow clearing, and agricultural work. With optional EPA / CE certified engines, hydraulic joystick control, and full OEM customization support, it‘s built for global markets and everyday productivity.
Description Parameters
Description

SENDEMACH 2 Ton Wheel Loader – Compact Power, Maximum Versatility

The SENDEMACH 2T wheel loader is engineered for performance, durability, and ease of operation. Designed for construction, municipal maintenance, and farm use, it combines a strong lifting capacity, efficient hydraulic system, and comfortable cabin in a compact, easy-to-maneuver structure.

Whether you're handling materials on job sites or clearing snow in rural areas, this loader delivers the perfect balance of size and strength for your operations.

Key Features:

  • Reliable Engine Options:
    ➤ Equipped with Yunnei, Xinchai, or optional Yanmar engines
    EPA, Euro 5, CE certified versions available for export markets

  • Rated Load:
    2000 kg (2 Ton) lifting capacity
    ➤ Suitable for sand, gravel, feed, snow, bricks, construction waste, and more

  • Operating Weight:
    ➤ Approx. 3500–4000 kg, ensuring better traction and work stability

  • Bucket Capacity:
    ➤ Standard: 0.8 – 1.0 m³
    ➤ Optional: high-dump bucket, side dump, log grapple, bale clamp, snow blade, etc.

  • Advanced Hydraulic System:
    ➤ Fast cycle time, smooth lifting
    ➤ Optional pilot hydraulic joystick control for effortless operation
    ➤ Efficient steering and multi-function working valve

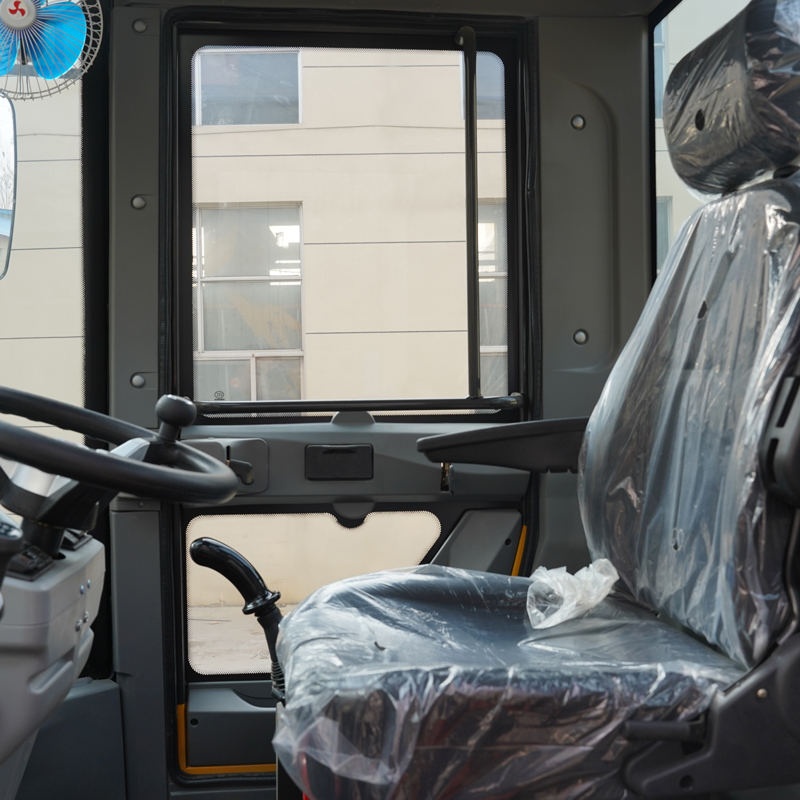

  • Comfortable Cabin:
    ➤ Enclosed cab with optional A/C, heater, fan
    ➤ Wide field of vision, ergonomic seat, optional rear camera

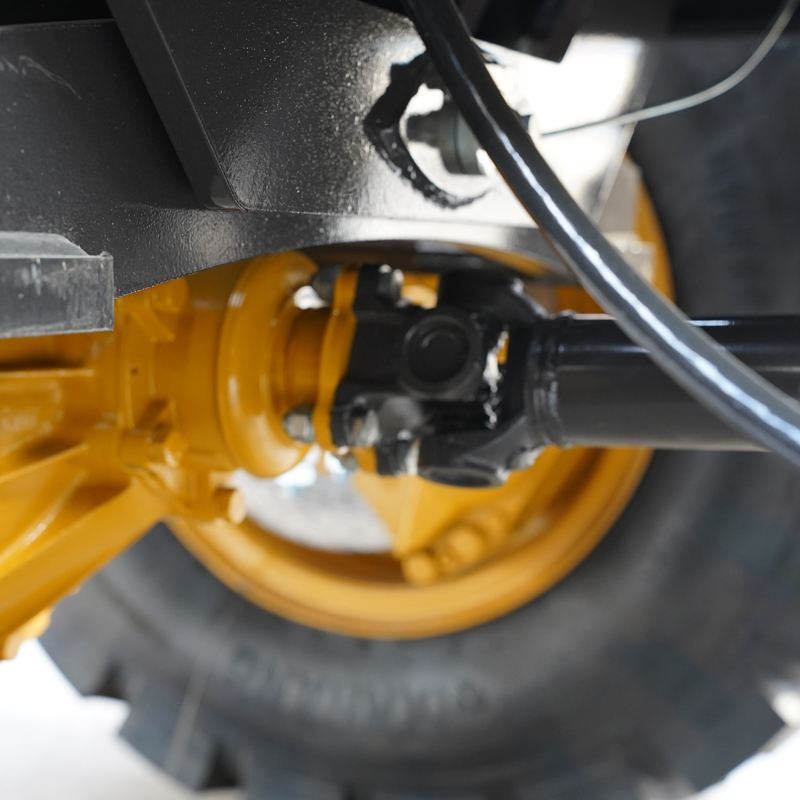

  • Heavy-Duty Axles & Tires:
    ➤ Reinforced drive axle for rough terrain
    ➤ Wide tire options (agricultural, industrial, snow-use)

  • Transmission System:
    ➤ Torque converter or mechanical gearbox
    ➤ Smooth speed shifting and better fuel efficiency

  • Customization & OEM Support:
    ➤ Color, logo, seat layout, working tools
    ➤ Custom manuals, stickers, packaging available
    ➤ Ideal for dealers and importers in Europe, South America, Southeast Asia, Africa


Parameters
ModelSDW-20
Main Specifications
Rated Payload2,000kg
Operating Weight with Standard Bucket5,940kg
Bucket Capacity0.9-1.0m³
Operating Specifications
Breakout Force63KN
Max. Drawbar Force55KN
Transmission
Transmission GearsF2/R2
Torque Converter TypeSingle stage, 3 elements
Maker & TypeZL15
Axle (Axle, Tire & Brakes)
Rear- oscillation +/-±12
Engine
Engine ModelYT4B4-22
Rated Power60kW
Rated Speed2,200r/min
Displacement4.76L
Implement Hydraulic System
Implement System TypeOpen center
Hydraulic Cycle Time7.8s
System Pressure Setting17Mpa
Raise4.35s
Brake System
Service BrakeDry&caliper, air to oil control
Parking BrakeDisk & Caliper
Tires
Size16/70-20
TypePR
Layer14
Textured TypeL-3
