SENDEMACH SWL45 Skid Steer Loader – Versatile Power in a Compact Frame
The SWL45 skid steer loader is designed for contractors, farmers, and municipal users who need a high-performing loader that can work in tight or limited-access areas. It features strong lifting capacity, hydraulic quick-attach system, and compatibility with dozens of attachments such as buckets, augers, forks, sweepers, trenchers, and more.
Whether you're in construction, landscaping, agriculture, or warehouse loading, this machine is a smart investment for multi-tasking on the job site.
Rated Load:
➤ 750 kg
➤ Ideal for medium-duty operations
Engine Options:
➤ Yunnei / Xinchai / Kubota / Perkins, diesel engines
➤ Optional EPA Tier 4 / Euro 5 / CE certified engines available
➤ Engine power: typically 37–50 kW
Operating Weight:
➤ Approx. 2900–3200 kg
Bucket Capacity:
➤ Standard: 0.4–0.5 m³
➤ Optional: Grapple bucket, 4-in-1 bucket, pallet forks, snow blade, hydraulic breaker, auger, etc.
Hydraulic System:
➤ High-flow auxiliary hydraulics for powered tools
➤ Quick-connect couplers
➤ Joystick or lever control optional
Compact Dimensions:
➤ Great maneuverability in confined spaces
➤ Turning radius: small skid-based pivoting action
➤ Ground clearance suitable for uneven surfaces

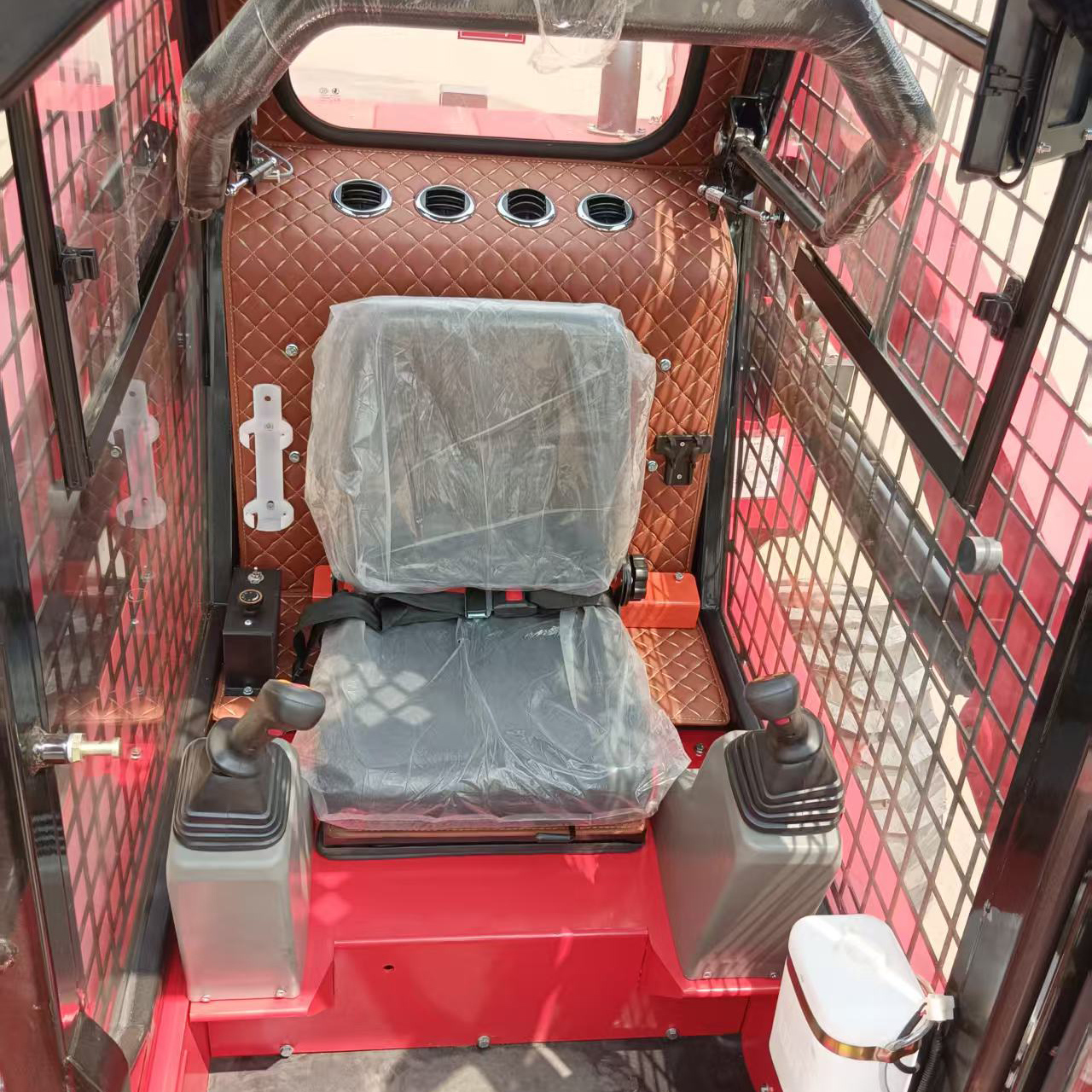

Cabin & Safety Features:
➤ Fully enclosed cabin with heater/fan/A/C optional
➤ Safety belt, side windows, ergonomic seat
➤ Optional rear-view camera and work lights
Tires & Tracks:
➤ Standard rubber tires
➤ Optional solid tires or conversion to rubber tracks
OEM Support:
➤ Custom branding/logo/paint
➤ Distributor package support (manuals, stickers, parts kits)
➤ Custom packaging and attachments
| Model | SL45 |
| Operating weight(kg) | 3100 |
| Rated load(kg) | 700 |
| Bucket capacity(m³) | 0.4 |
| Max Speed(km/h) | 12 |
| Max traction(kN) | ≥25.40 |
| Max breakout(kN) | ≥18.4 |
| Lifting time of boom(s) | 7 |
| Manufacturer | XINCHAI |
| Model | C490BPG |
| Rated power(kW/rpm) | 36.7/2650 |
| Engine displacement(L) | 2.27 |
| Overall operating height(mm) | 3980 |
| Height to bucket hinge pin(mm) | 3080 |
| Height to top of cab(mm) | 2140 |
| Height to bottom oflevel bucket(mm) | 2913 |
| Without bucket length(mm) | 2640 |
| Overall length with bucket(mm) | 3420 |
| Dumping angle at maximum height(°) | 40 |
| Dumping height(mm) | 2380 |
| Dumping reach(mm) | 700 |
| Rollback of bucket on ground(°) | 30 |
| Rollback of bucket at full height(°) | 104 |
| Wheelbase(mm) | 991 |
| Ground clearance(mm) | 185 |
| Angle of departure(°) | 20 |
| Front turning radius without bucket(mm) | 1300 |
| Front tuning radius(mm) | 2290 |
| Rear tuning radius(mm) | 1440 |
| Rear axle to bumper(mm) | 1080 |
| Tread width(mm) | 1450 |
| Width(mm) | 1720 |
| Bucket width(mm) | 1740 |
